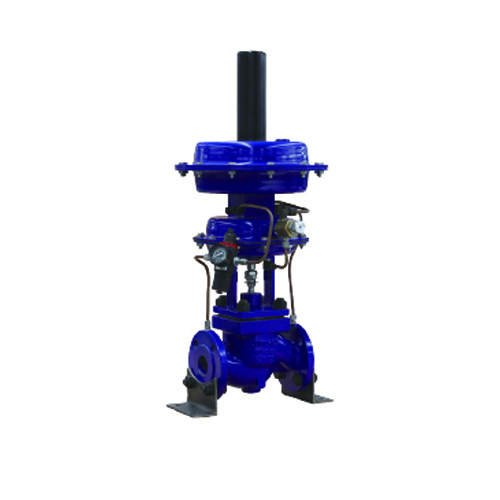

Valve Specific Information
• Size: 1/2″- 6 “(DN15-DN150)
• Working Pressure: ANSI CLASS150.
(PN10/16)
• Connection Type Flanged
• Inherent now feature: quick opening
• Executive body signal interface: M12x1.5, M14x1.5
• Regulation accuracy: 3%
• Actuator: Diaphragm
• Body Material: Stainless steel
• Plated Material: Stainless steel
• Seal: PTFE/PPL/Stainless steel/Hard alloy
• Design Standard: ASME B 16.34,JB/T11049-2010
• Big area of pressure-testing diaphragm, small rigidity of spring,
act delicately function stable
